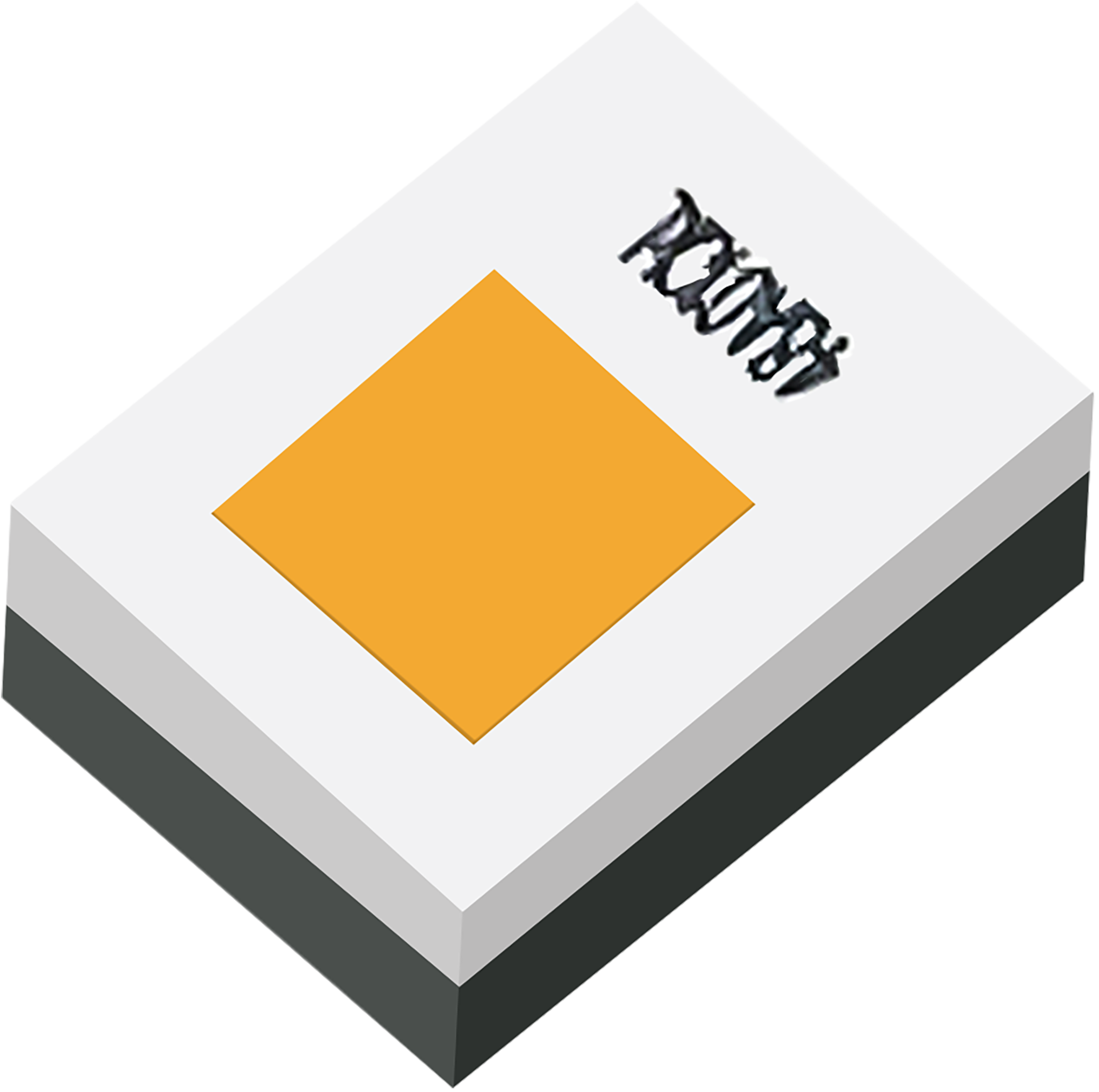

ASL1-SA1 3W

This products is specially designed for automotive forward lighting with lambertian emission pattern, high brightness concentrated light, High thermal conductivity ceramic substrate, phosphor in glass technology, eutectic AuSn die bonding, highly uniform color over angle.

Product advantages

Thermoelectric separation design  and low thermal resitstance

High light density and  light efficiency

Single side emission, perfect point light source products

High cost performance and reliability

Product features

Ceramic Substrate package , High brightness ,High reliability

Size：1.90mmx1.50mmx0.78mm

According to the ANIS standard color gamut

AEC-Q102

Compatible with SMT

Viewing Angle：120°

Package：Max: 3000pcs/reel

Recommended current 1000mA


Product Showcase

Electro Characteristics: (T solder pad =25 ℃，IF=1000mA)
Item  Item Rank
CCT BIN (K)1600~1950


Luminous Flux (lm)220~235235~250250~265265~280
VF(V)2.75~3.03.0~3.253.25~3.5


Applications

Low Beam

High Beam

Daytime Running/Position Light

Front Fog Lamp

Back-up Lamp


Reference

Specification sheet：

ASL1-SA1 Data Sheet-Y02.pdf


CAD(3D):

ASL1-Amber 3D.zip


Optical file:

https://pan.baidu.com/s/1sfq7XxMRFZBtynqHF7Oenw?pwd=kymj

Extract code：kymj
