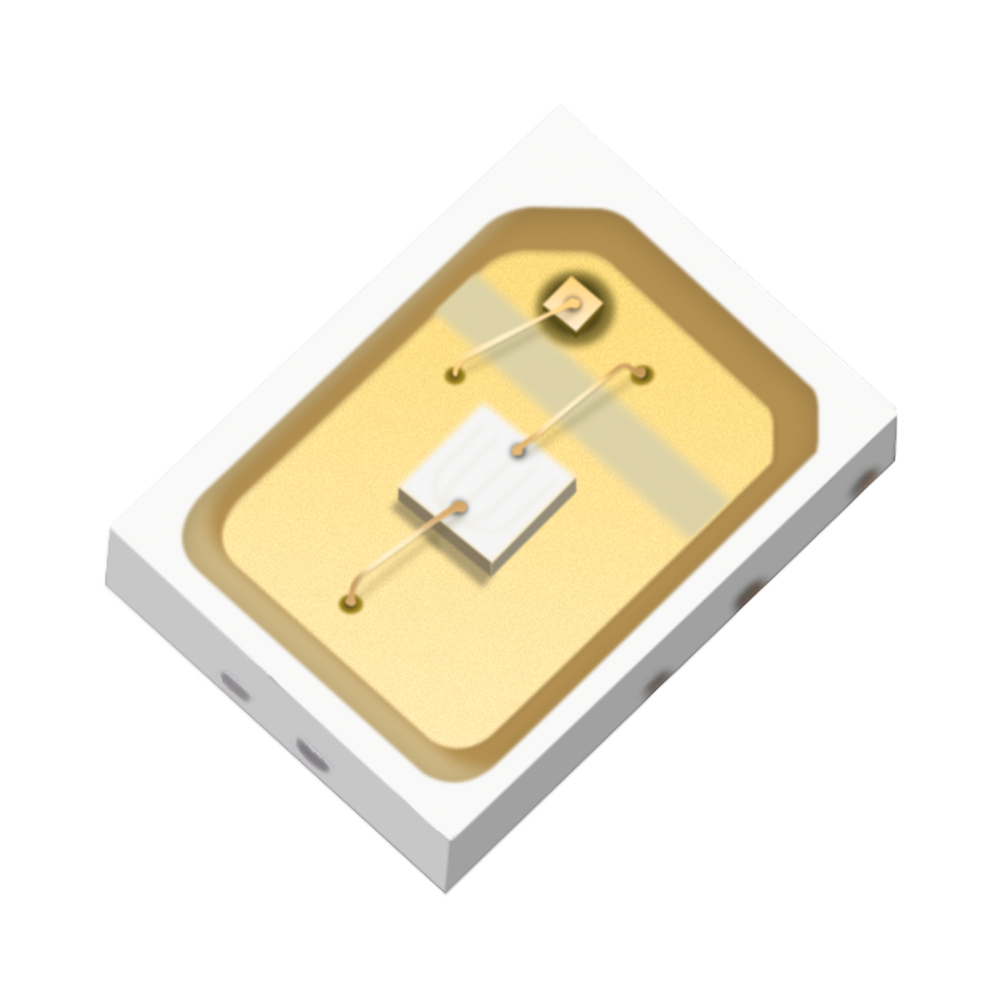

This products is specially designed for automotive forward lighting with lambertian emission pattern, high brightness concentrated light, High thermal conductivity ceramic substrate, phosphor in glass technology, eutectic AuSn die bonding, highly uniform color over angle.
Thermoelectric separation design and low thermal resitstance
High light density and light efficiency
Single side emission, perfect point light source products
High cost performance and reliability
Ceramic Substrate package , High brightness ,High reliability
Size：2.7mmx2.0mmx0.6mm
According to the ANIS standard color gamut
AEC-Q102
Compatible with SMT
Viewing Angle：120°
Package：Max: 3000pcs
Recommended current 200mA
| Electro Characteristics (T solder pad =25 ℃，IF=200mA) | ||||
| Item | Item Rank | |||
| WLD (nm) | A | B | C | D |
| Luminous Flux (lm) | 26.5~31 | 31~36 | 36~41.5 | 41.5~51.7 |
| VF (V) | 2.75~3.00 | 3.00~3.25 | 3.25~3.50 | |
Autonomous Driving Indicator Light
Specification sheet：
CAD（3D）：
Optical File Link：
https://pan.baidu.com/s/15URNe68x4VWikPnlSPkVqw?pwd=cyse
Code: cyse
