It empolys PLCC packaging to realize uniform surface light source and lambert curve light which is beneficial to the secondary optical design. Meanwhile , it can make the signal light with aesthetic feeling of the design and more recognizability by adjusting the number and configuration of LED components.
It can adapt to the different practice circumstances with good shock resistance and seismic performance
Rapid response speed makes it can be lit only in microseconds
Low energy consumption and long lifetime

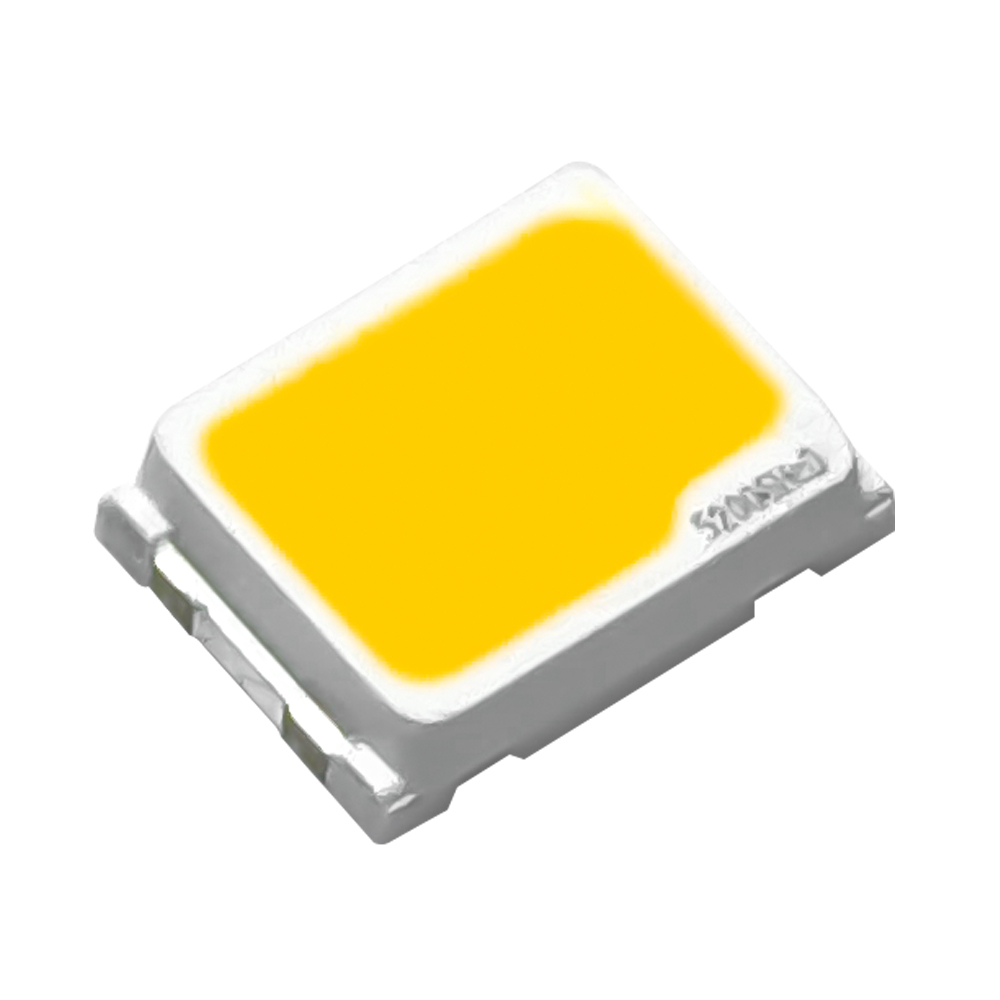

PLCC package , High brightness ,High efficiency
Size：2.75mmx2.0mmx0.7mm
MSL 2a
AEC-Q102
Compatible with SMT
Viewing Angle：120°
Package：Max: 3000pcs/reel
Recommended current 50mA
| Electro Characteristics (T solder pad =25 ℃，IF=50mA) | ||||
| Item | Item Rank | |||
| CCT BIN (K) | 1600~1950 | |||
| Luminous Flux (lm) | 9.5~11.2 | 11.2~13 | 13~15 | 15~17.3 |
| 17.3~20 | 20~23 | |||
| VF (V) | 2.75~3.00 | 3.00~3.25 | 3.25~3.50 | |
Lateral Indicator Light
Specification Sheet：
CAD(3D):
Optical File Link：
https://pan.baidu.com/s/1e7T3jrzOtV6ddH2fbJZsPw?pwd=it2b
Extracted Code : it2b
