It empolys EMC packaging to realize uniform surface light source and lambert curve light which is beneficial to the secondary optical design. Meanwhile , it can make the signal light with aesthetic feeling of the design and more recognizability by adjusting the number and configuration of LED components.
It can adapt to the different practice circumstances with good shock resistance and seismic performance
Rapid response speed makes it can be lit only in microseconds
Low energy consumption and long lifetime

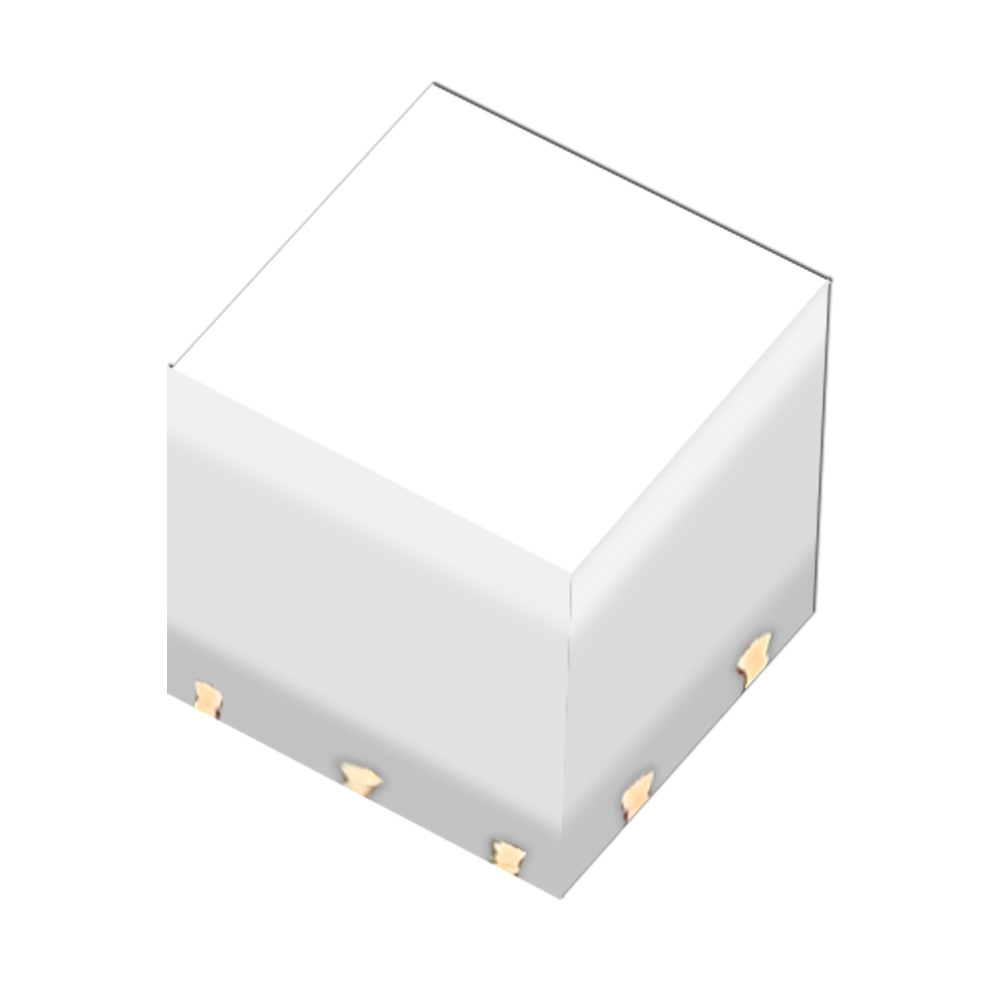

EMC package , High brightness ,High efficiency
Size：1.5mmx1.5mmx1.42mm
MSL 3
AEC-Q102
Compatible with SMT
Viewing Angle：180°
Package：Max: 2000pcs
Recommended current 50mA
| Electro Characteristics (T solder pad =25 ℃，IF=50mA) | ||||
| Item | Item Rank | |||
| WLD (nm) | 583~586 | 586~589 | 589~592 | 592~595 |
| Luminous Flux (lm) | 3.7~4.3 | 4.3~5.0 | 5.0~5.8 | 5.8~6.8 |
| VF (V) | 1.9~2.05 | 2.05~2.2 | 2.2~2.35 | 2.35~2.5 |
