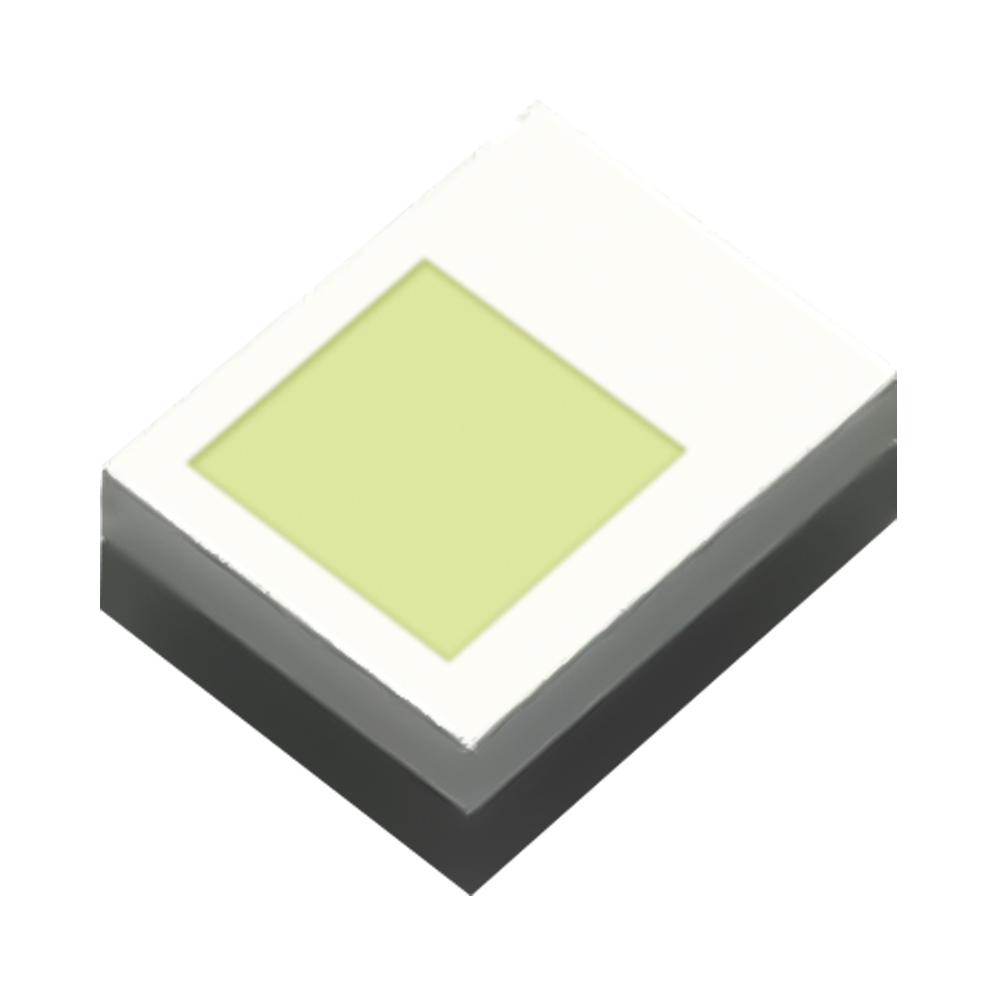

This products is specially designed for automotive forward lighting with lambertian emission pattern, high brightness concentrated light, High thermal conductivity ceramic substrate, phosphor in glass technology, eutectic AuSn die bonding, highly uniform color over angle.
Thermoelectric separation design and low thermal resitstance
High light density and light efficiency
Single side emission, perfect point light source products
High cost performance and reliability
Ceramic Substrate package , High brightness ,High reliability
Size：1.90mmx1.50mmx0.79mm
According to the ANIS standard color gamut
AEC-Q102
Compatible with SMT
Viewing Angle：120°
Package：Max: 3000pcs/reel
Recommended current 350mA
| Electro Characteristics (T solder pad =25 ℃，IF=350mA) | ||||
| Item | Item Rank | |||
| CCT BIN (K) | A | B | C | D |
| Luminous Flux (lm) | 90~100 | 100~110 | 110~120 | 120~130 |
| VF (V) | 2.4~2.6 | 2.6~2.8 | 2.8~3.0 | |
Low Beam
High Beam
Daytime Running/Position Light
Front Fog Lamp
Back-up Lamp
Specification sheet：
CAD（3D）：
Optical File Link：
https://pan.baidu.com/s/1IaXaZhdwsA2d57ijhF30Qw?pwd=cwa5
Extracted code: cwa5
